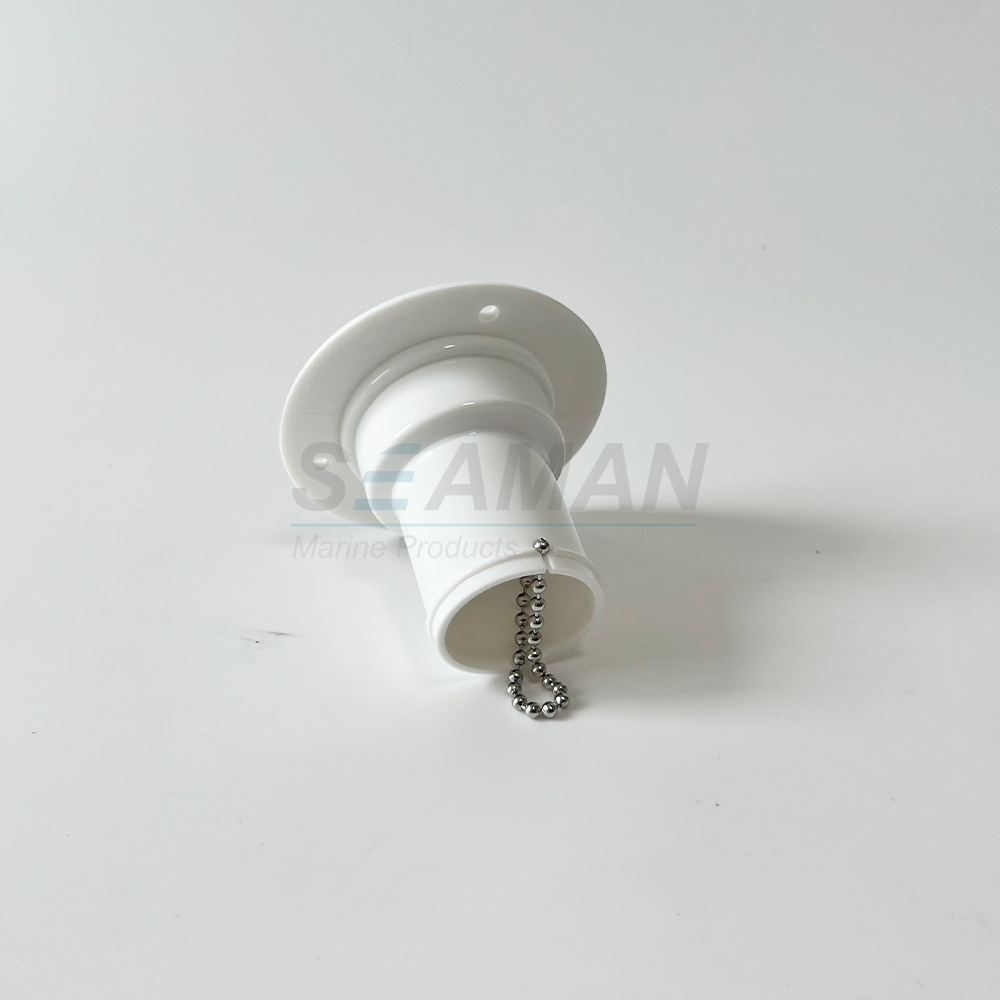

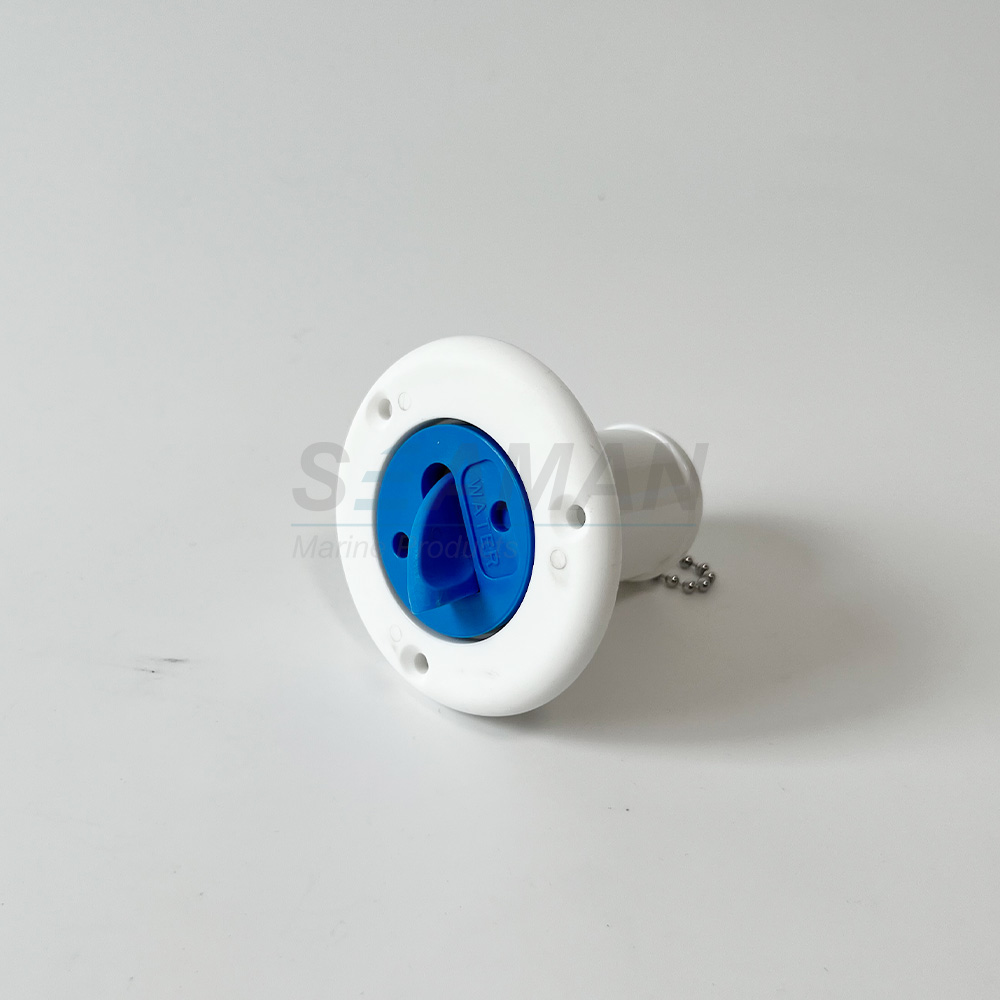

ABS Water Deck Fill Port with Locking Key Cap for Marine and RV Water Tanks
Description du produit
Le présent 38mm ABS water deck fill port is designed for water tank filling on boats, yachts, RVs, trailers, and other mobile water systems. It provides a compact deck-mounted inlet for fresh or service water applications where lightweight construction and secure closure are required.
The body is made from UV-resistant ABS plastic and fitted with a rubber O-ring to help support leak protection during normal installation and use. The locking key cap helps keep the inlet closed when not in use, while the tethered chain connection helps prevent the cap from being lost during filling.
The unit is designed for 38 mm (1-1/2″) hose connection and features a compact flange for deck or panel mounting. Its low-profile structure makes it suitable for visible installations on boats, RVs, trailers, and related water tank systems.
Caractéristiques principales
38 mm hose connection
Conçu pour 38 mm (1-1/2″) hose connection for common marine and RV water fill applications.
ABS body with O-ring seal
Fabriqué à partir de UV-resistant ABS plastic avec un rubber O-ring to help support leak protection.

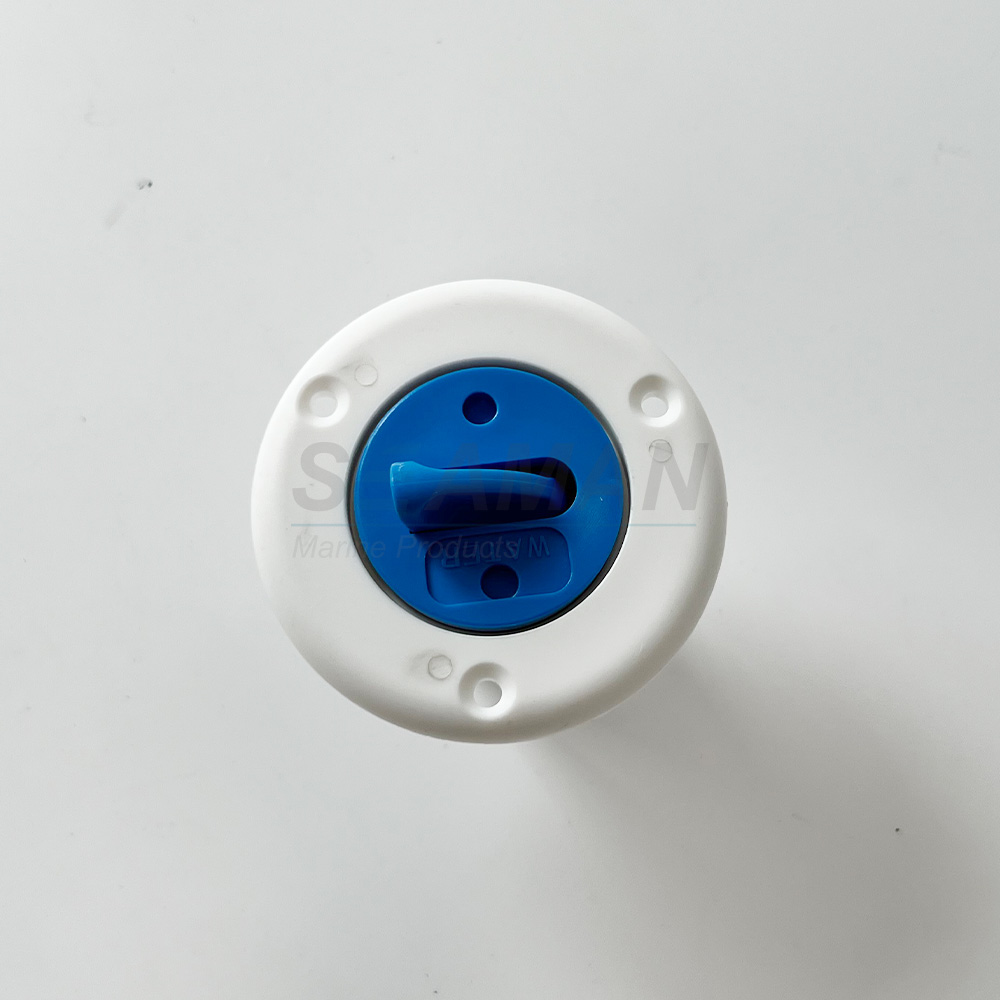

Locking key cap
Le key cap design helps keep the inlet closed and protected when not in use.

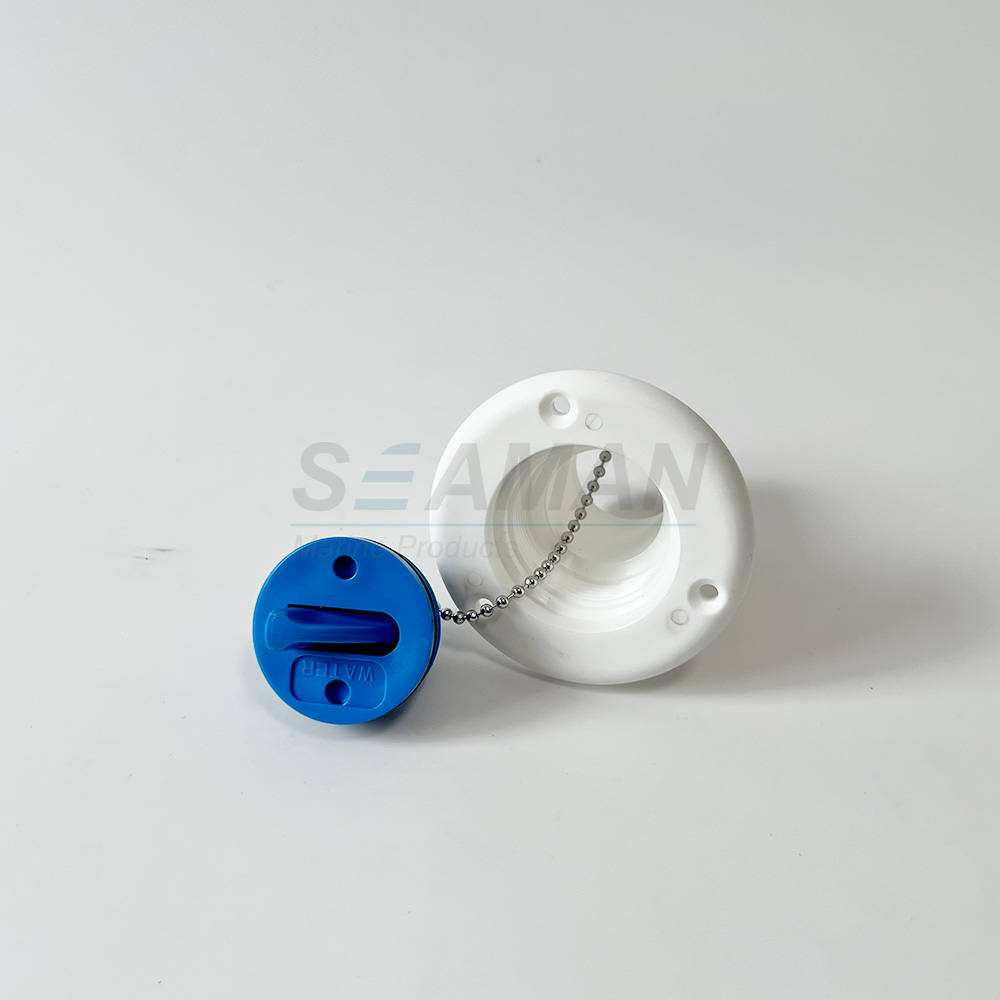

Tethered cap connection
Le chain tether helps prevent the cap from being misplaced during use.
Suitable for boat and RV water tanks
A practical water fill solution for boats, yachts, RVs, trailers, and mobile water systems.
Spécifications techniques
| Paramètres | Valeur |
|---|---|
| Modèle | SM605-38 |
| Type de produit | Water deck fill port |
| Matériau | UV-resistant ABS |
| Couleur | White / Black |
| Seal | Rubber O-ring |
| Diamètre extérieur du tube | 38 mm |
| Hose Size | 1-1/2″ |
| Flange Size (A) | 85 mm |
| Height (B) | 70 mm |
| C | 34 mm |
| D | 38 mm |
| E | 40 mm |
| F | 50 mm |
| G | 5 mm |
| H | 68 mm |
| Taille du trou | 55 mm |
| Poids | 86 g |
| Cap Connection | Tethered chain |
Applications typiques
Le présent ABS water deck fill port is suitable for:
- boat and yacht water tanks
- RV and motorhome fresh water systems
- trailers and utility vehicles
- trucks and agricultural equipment
- other compact water inlet installations
It is a practical choice for buyers looking for a lightweight water fill inlet with locking cap and 38 mm hose connection.
Installation Notes
Before ordering or installation, buyers should confirm:
- hose size compatibility
- deck or panel cutout size
- flange mounting position
- whether marine sealant is required
- fresh water or service water application
- color or OEM requirements
For watertight deck installation, apply a suitable sealant under the flange and fasten the unit securely.
OEM and Color Options
Standard colors include blanc et bleu. OEM customization for color or branding can be discussed for bulk orders.
FAQ
1. What is this deck fill port used for?
It is used as a water inlet for boats, RVs, trailers, and other fresh or service water tank systems.
2. What hose size does it fit?
It is designed for 38 mm (1-1/2″) hose connection.
3. Does it include a seal?
Yes. It includes a rubber O-ring to help support leak protection.
4. How does the cap stay attached?
The cap is connected by a tethered chain to help prevent loss during use.
5. Can you provide custom colors or OEM service?
Yes. Custom colors and OEM service are available for bulk orders.
