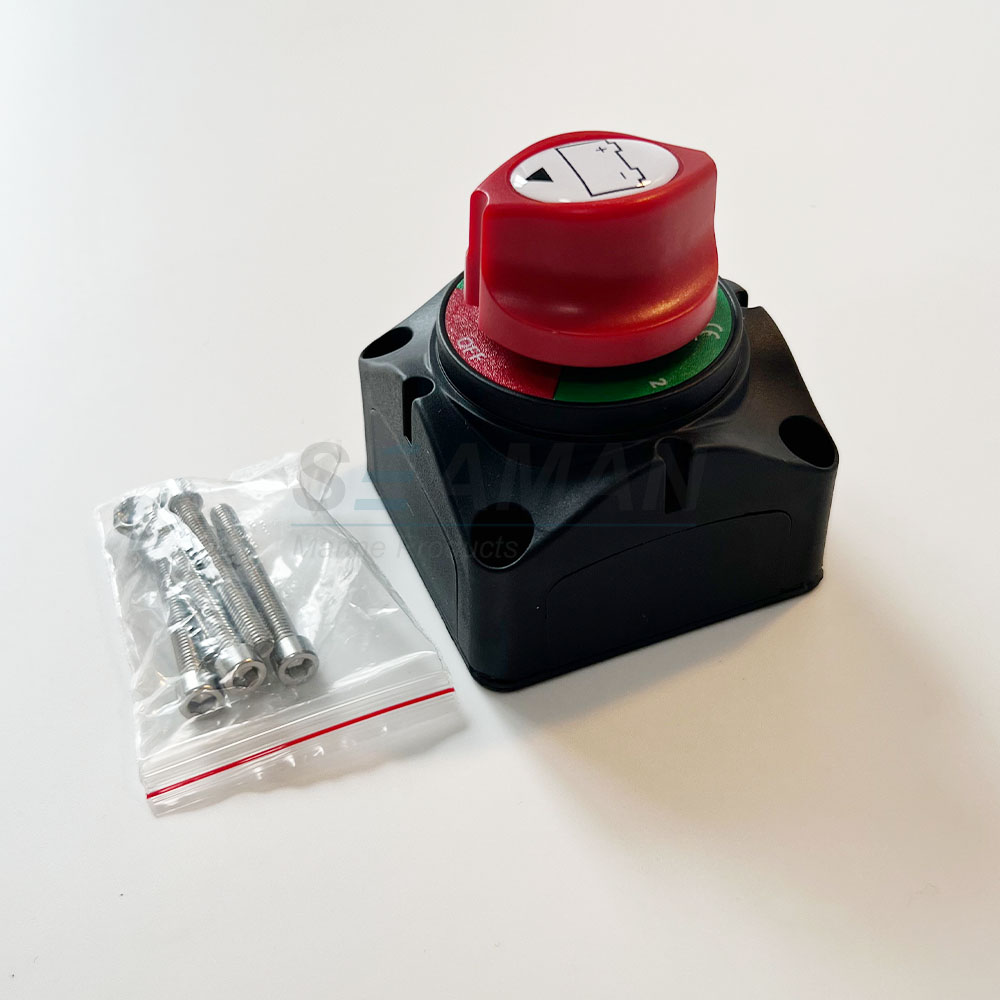

Waterproof 4 Position Marine Battery Switch for Boat and RV
제품 설명
With OFF-1-2-BOTH operation, it allows users to select battery bank 1, battery bank 2, combine both batteries, or disconnect power when the vehicle or vessel is not in use. The make-before-break design helps maintain power during switching, while the ignition-protected construction makes it suitable for gasoline-powered marine installations.
주요 기능

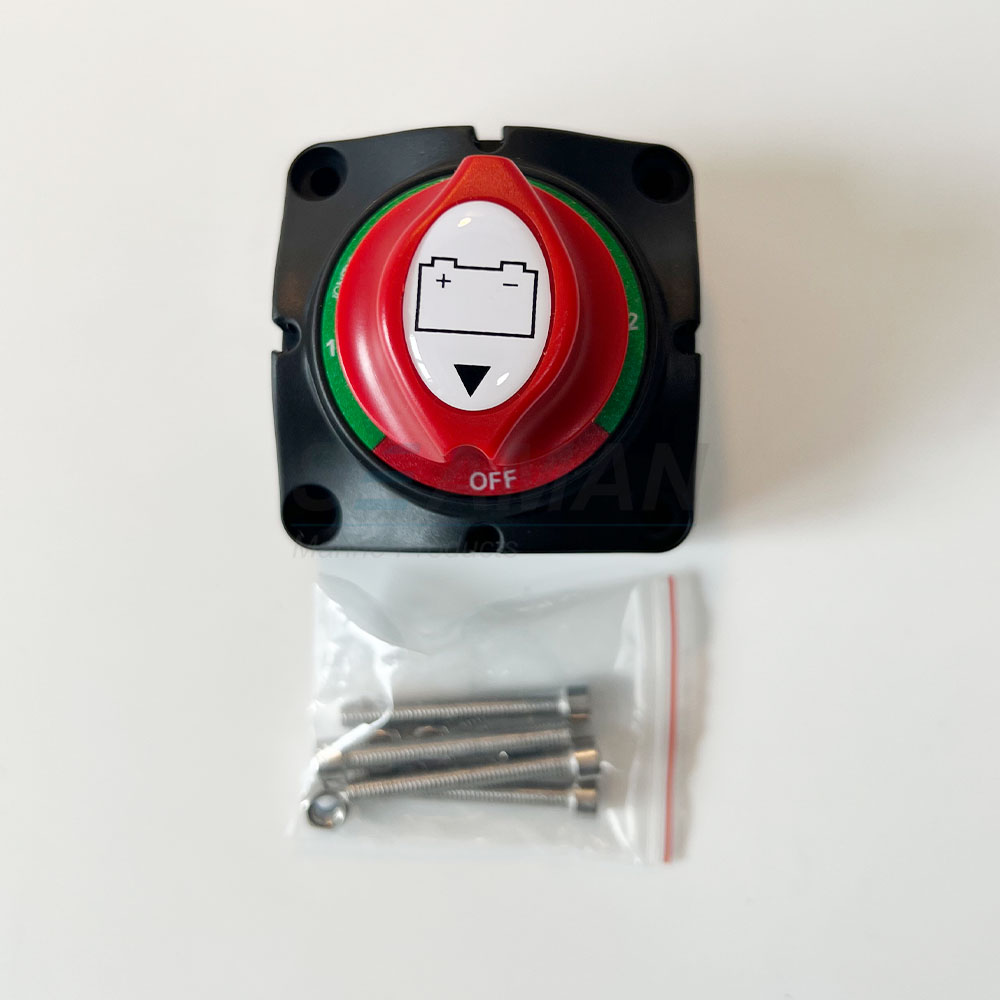

1. 4 Position Battery Selection
The switch offers OFF / 1 / 2 / BOTH operation for flexible battery management. It can isolate one battery, select the other, combine both banks, or fully disconnect power.
2. Make-Before-Break Design
Its make-before-break contact design allows switching between battery banks without interrupting power to connected loads.
3. Ignition Protected
The switch is ignition protected, making it suitable for installation on gasoline-powered boats where added safety is required.

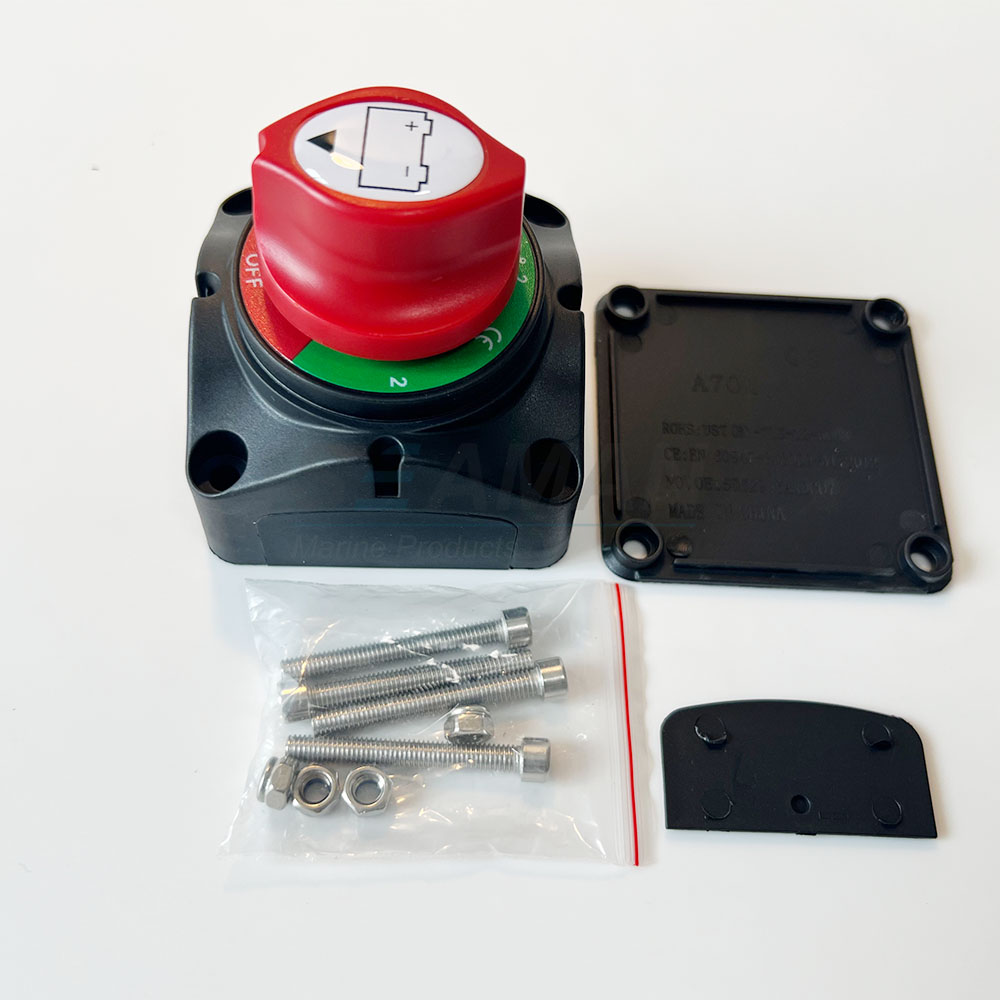

4. Waterproof and Heavy-Duty Housing
Built with a durable ABS housing 그리고 tinned copper studs, this switch is designed for demanding marine and vehicle electrical environments.
5. Surface or Rear Panel Mounting
The housing design supports surface mounting 또는 rear panel mounting, giving more flexibility during installation.
6. Safe Battery Isolation
This battery selector switch can disconnect power safely when the boat or vehicle is not in use, helping protect the electrical system and reduce battery drain.
기술 사양
| 항목 | 사양 |
|---|---|
| 제품 유형 | Marine Battery Switch |
| Operation Mode | OFF / 1 / 2 / BOTH |
| Continuous Rating | 200 A |
| Intermittent Rating | 455 A |
| Cranking Rating | 1000 A |
| 작동 전압 | 12-48V DC |
| 재료 | ABS + Copper |
| Contact Type | Normally Closed |
| Connector Type | Clamp |
| 마운팅 유형 | Panel Mount |
| Terminal Type | Screw Terminal |
| 설치 | Surface or Rear Panel Mount |
애플리케이션
이 4 position marine battery selector switch is suitable for:
- Boats and yachts
- RVs and campers
- Travel trailers
- UTV and ATV electrical systems
- Truck auxiliary battery setups
- General dual-battery DC power systems
Why Buyers Choose This Model
Unlike a basic battery disconnect switch that only turns power on or off, this 4 position selector switch allows users to choose battery 1, battery 2, both batteries, or full isolation. It is a better fit for dual-battery systems that need flexible power control in boats, RVs, and other 12-48V DC applications.
OEM Service
OEM service is available for customized branding, packaging, and project-based sourcing requirements.
자주 묻는 질문
1. What do the 4 positions mean on this battery switch?
The switch offers OFF, battery 1, battery 2, and BOTH, allowing users to disconnect power or select one or both battery banks as needed.
2. Is this battery switch suitable for dual-battery systems?
Yes. It is designed for dual-battery setups and allows you to select either battery individually or combine both for shared output.
3. Can this switch be used on a gasoline-powered boat?
Yes. The switch is ignition protected, making it suitable for installation aboard gasoline-powered boats when properly fitted.
4. Does the switch interrupt power when changing batteries?
No. Its make-before-break design helps maintain power while switching between battery banks.
5. Can it be mounted in different ways?
Yes. The case design supports both surface mounting and rear panel mounting for flexible installation.
